Heating Equipment · #CEC

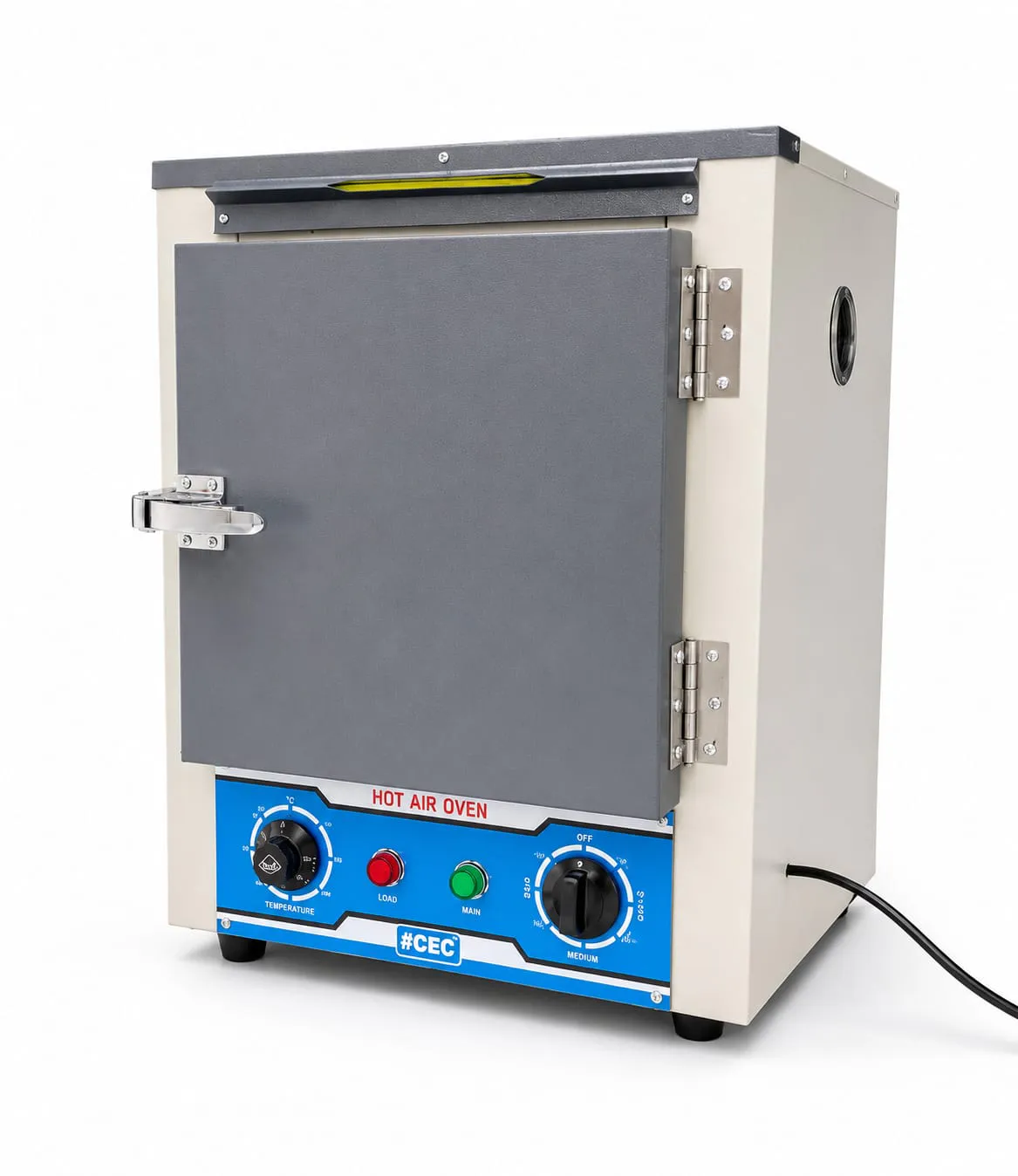

Hot Air Oven
Model: OVN-SERIES
The #CEC laboratory-type hot air oven has double-walled construction with a powder-coated mild-steel outer body and stainless-steel 304 inner chamber. The wall gap is insulated with special-grade glass wool to reduce heat loss. Temperature range is 5°C above ambient to 250°C with accuracy of ±2°C, controlled by a high-precision Digital Controller. The chrome-plated Nichrome wire heating element (ISI approved) is positioned at the bottom. Galvanised wire-mesh shelves are supplied. Model OVND12X12 has an inner chamber of 12 x 12 x 12 inches, rated power of 1250 W, 27-litre capacity and 1 shelf.
Technical specifications
- Construction: Double walled
- Outer body: Mild steel, powder coated
- Inner chamber: Stainless steel 304
- Insulation: Special-grade glass wool
- Temperature range: 5°C above ambient to 250°C
- Temperature accuracy: ±1°C
- Temperature control: Digital
- Heating element: Chrome-plated Nichrome wire (ISI approved)
- Heating position: Bottom
- Shelves: Galvanised wire mesh
- Power supply: 230V AC, 50Hz, single phase
- Inner chamber size (W x D x H): 12 x 12 x 12 inches
- Rating: 1250 W
- Capacity: 27 litres
- Catalogue variant: G
- Number of shelves: 1
- Stainless-steel chamber: Yes
Choose a variant
Selected variant
14" x 14"
- Model / SKU
- OVNT14X14
- Availability
- On enquiry
- Price
- ₹17,150 + GST
The #CEC laboratory-type hot air oven has double-walled construction with a powder-coated mild-steel outer body and stainless-steel 304 inner chamber. The wall gap is insulated with special-grade glass wool to reduce heat loss. Temperature range is 5°C above ambient to 250°C with accuracy of ±2°C, controlled by a high-precision thermostat. The chrome-plated Nichrome wire heating element (ISI approved) is positioned at the bottom. Galvanised wire-mesh shelves are supplied. Model OVNT14X14 has an inner chamber of 14 x 14 x 14 inches, rated power of 1450 W, 43-litre capacity and 2 shelves.
- Construction: Double walled
- Outer body: Mild steel, powder coated
- Inner chamber: Stainless steel 304
- Insulation: Special-grade glass wool
- Temperature range: 5°C above ambient to 250°C
- Temperature accuracy: ±2°C
- Temperature control: Thermostat
- Heating element: Chrome-plated Nichrome wire (ISI approved)
- Heating position: Bottom
- Shelves: Galvanised wire mesh
- Power supply: 230V AC, 50Hz, single phase
- Inner chamber size (W x D x H): 14 x 14 x 14 inches
- Rating: 1450 W
- Capacity: 43 litres
- Catalogue variant: H
- Number of shelves: 2
- Stainless-steel chamber: Yes
